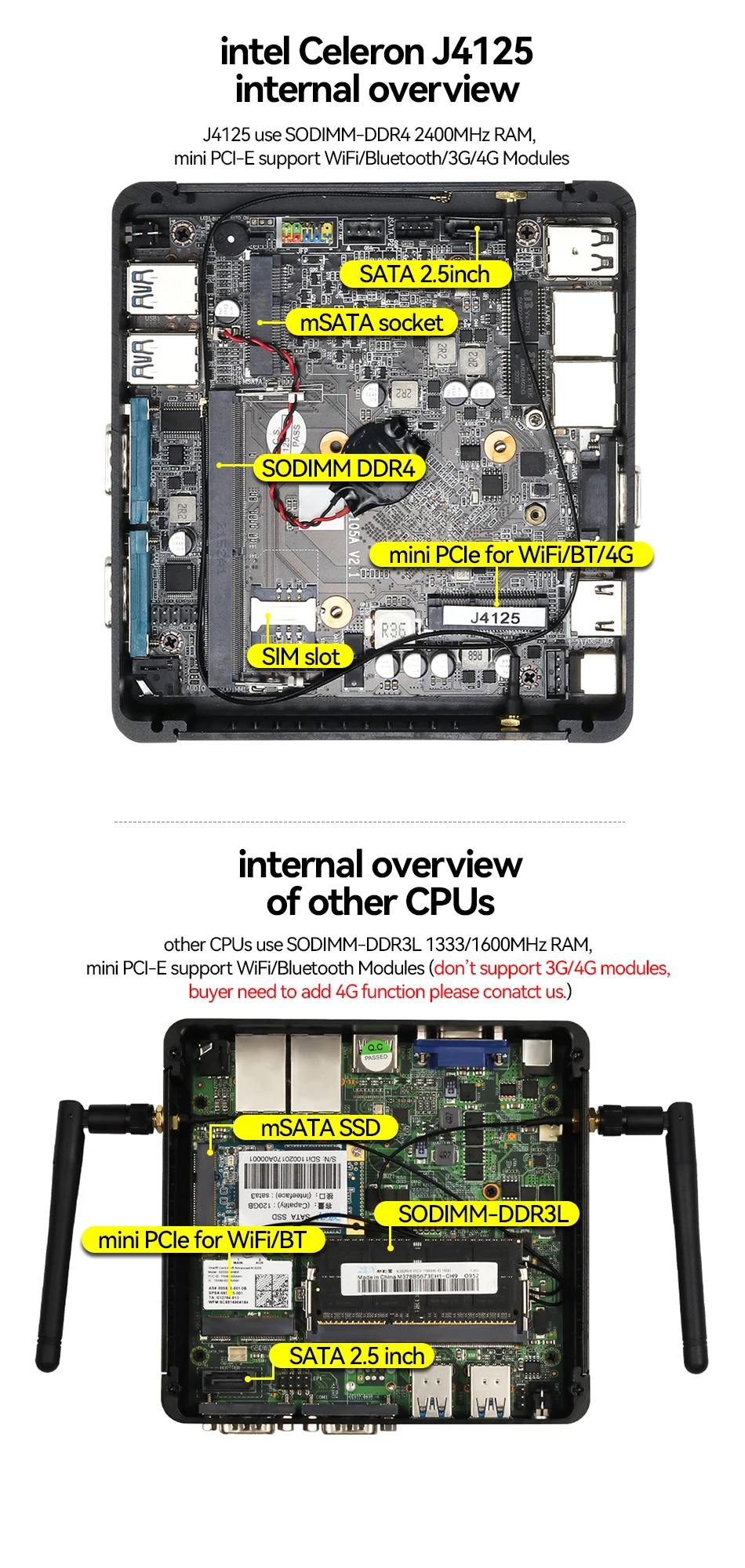

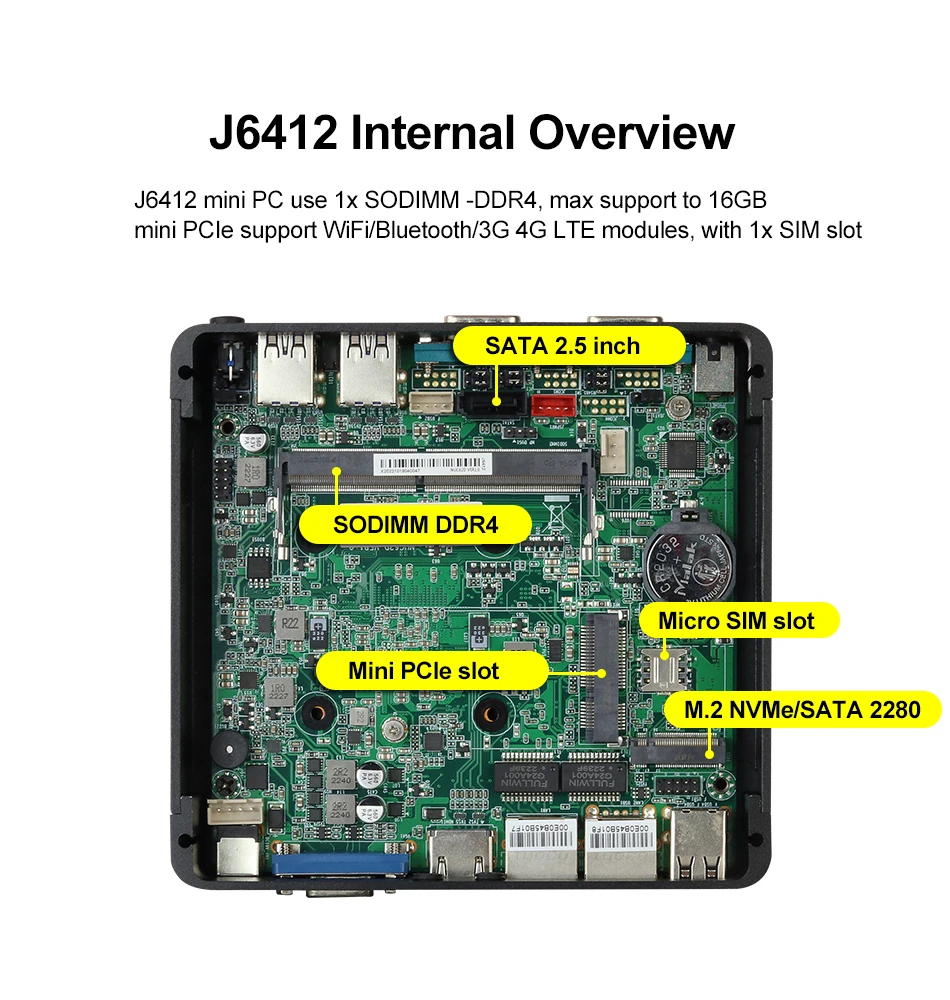

– Flexible RAM and storage, 1x memory slot, max support to 8GB; J6412 model supports one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD, other models support one mSATA SSD and one 2.5 inch SSD/HDD;
– 2x Realtek 8111E Gigabit Ethernet , support Wake on LAN, PXE boot.
– 2x COM serial ports, J6412 model two COM ports support adjust to RS485/RS232, other models two COM ports are RS232 mode.
– HDMI VGA support independent HD video output;
– Fanless aluminum metal case heat dissipation;
– 1x mini PCIE slot support expandsion of WiFi/4G LTE Modules;
– Support automatically power on after AC power restored;
Processors |
Intel Celeron J4125, 4 cores 4 threads, 4M Cahce, 2.0GHz, up to 2.70GHz Intel Celeron J6412, 4 cores 4 threads, 1.5M L2 Cache, 2.0GHz, up to 2.60GHz Intel Celeron 3205U, 2 cores 2 threads, 2M Cache, 1.50GHz |
Memory Types |
J4125 J6412 processors use 1x SODIMM DDR4 RAM 2400MHz, |
Hard Drive Types |
J6412 support 1x M.2 NVME/SATA 2280 SSD, 1x 2.5 inch HDD/SSD; Other CPUs support 1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD |
Processor Graphics |
J4125: Intel UHD Graphics 600 J6412: Intel UHD Graphics for 10th Gen Processor N2830/2955U/3205U/3805U: Intel HD Graphics i3-4005U: Intel HD Graphics 4400 i3-5005U: Intel HD Graphics 5500 |
Network Interfaces |
2x GbE RJ45 Realtek 8111E, Support Wake on LAN, PXE boot |
Expansion |
1x Mini PCI-E slot, |
OS Support |
J6412 support windows 11, windows 10, Linux/Ubuntu/CentOS J4125 support windows 10, Windows 8.1, Linux/Ubuntu/CentOS i3-4005U/i3-5005U Celeron 2955U/3205U/N2830 Pentium 3805U support Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/Centos |

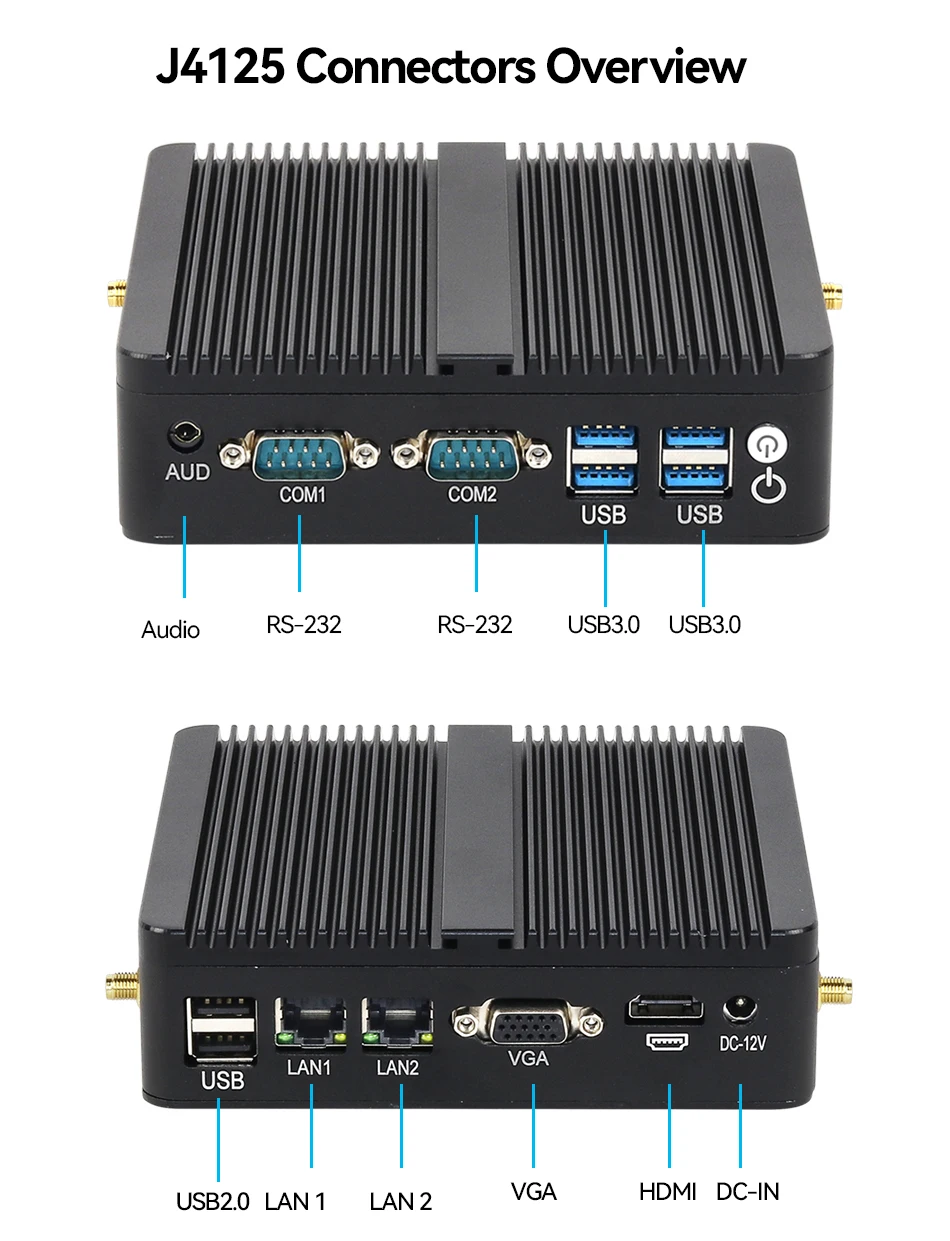

USB Ports |
J4125 J6412: 4x USB3.0, 2x USB2.0 |
Display Port |
1x VGA, 1x HDMI, supports dual monitors independently video output |
COM Ports |

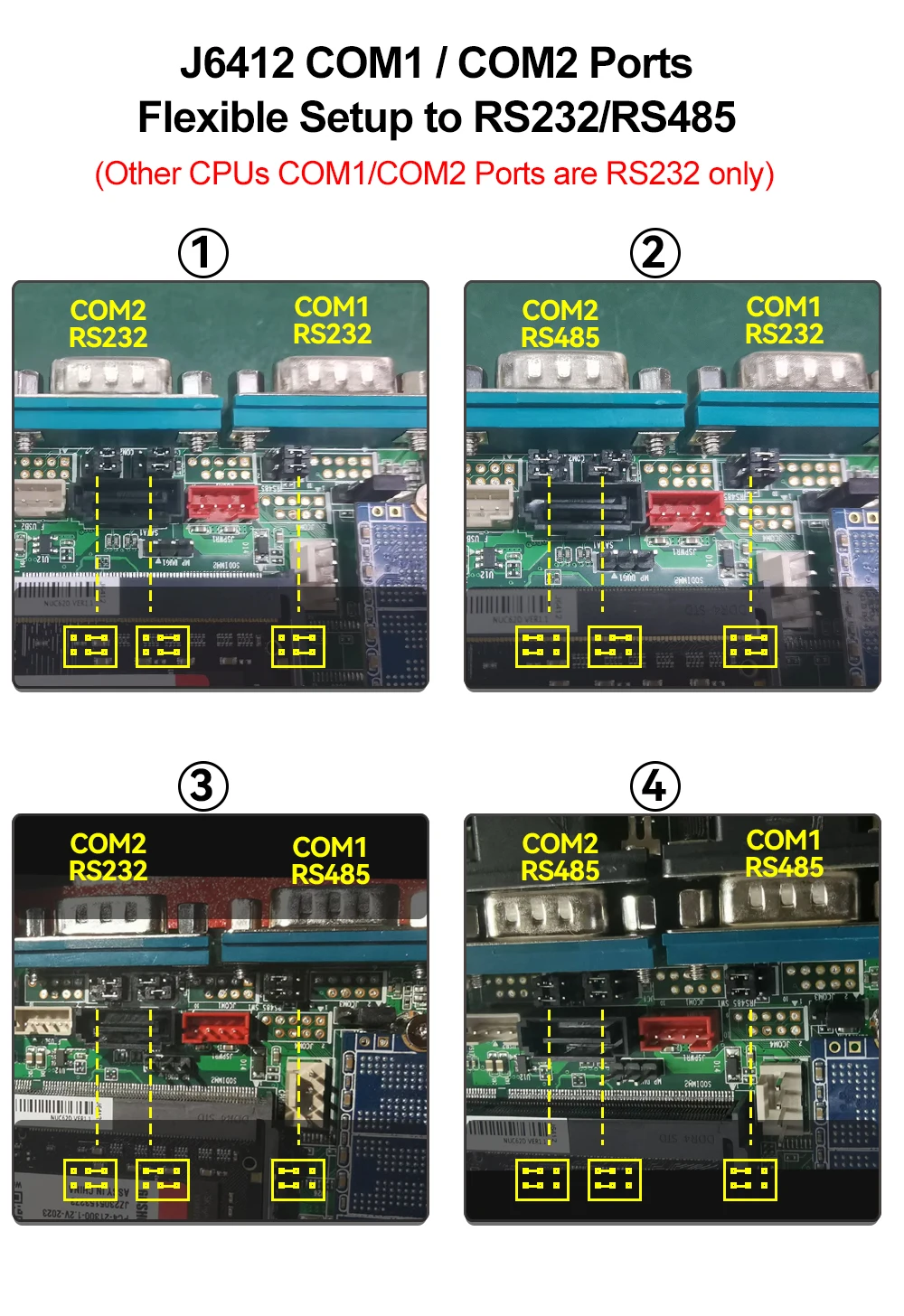

J6412 : 2x RS-232/RS-485, jumper free setting Other CPUs : 2x RS-232 |
Audio Ports |
Realtek RTL662/897 HD Audio, 3.5mm combo audio jack 2-in-1 Support MIC in, Line out |
Construction |
Fanless passive cooling |
Case Materials |
Aluminum Case |
Dimension |
135x124x40mm |
Netweight |
1.0Kg |
Storage Temperature |
﹣20℃to +60℃ |
Operating Temperature |
﹣20℃to +60℃ |
RH |
5%~90% @30℃, Non-condensing |
Working Voltage |
DC12V-3A/5A (customize working voltage please contct us) |

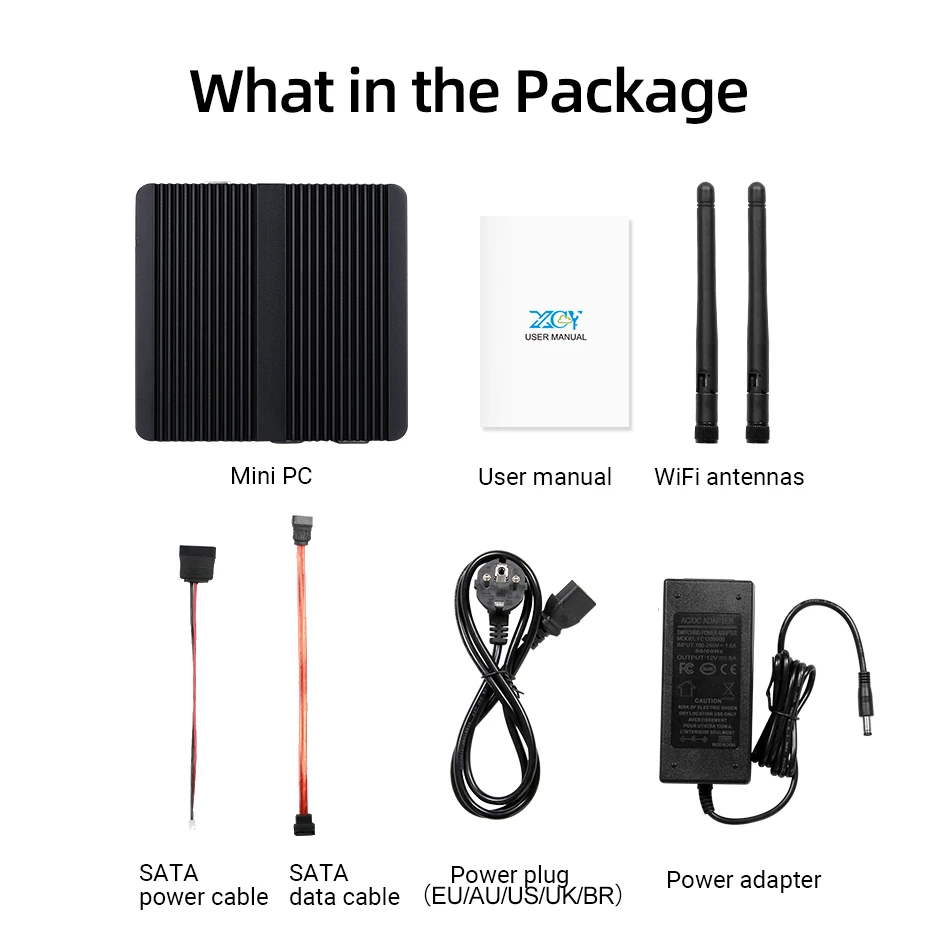

Package List |
1x Mini PC X30G |
NOTE:
