FUNCTION INTRODUCTION

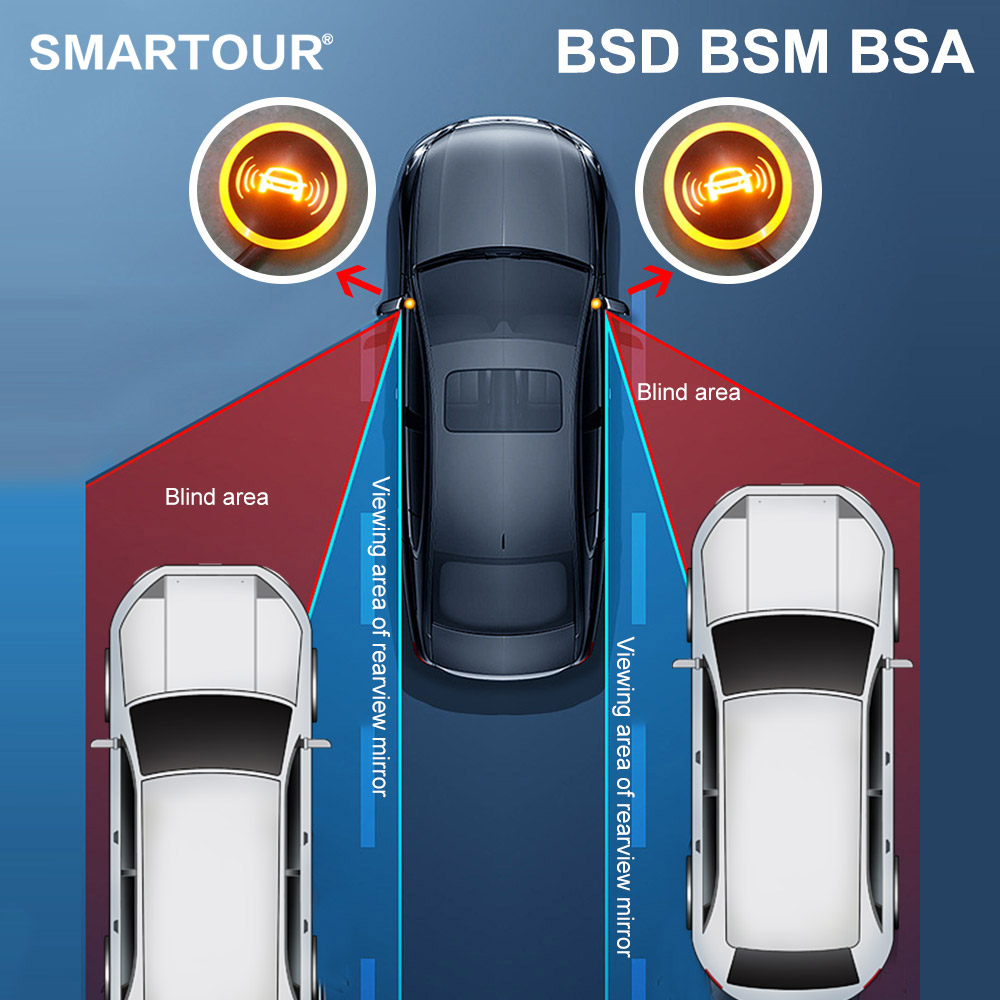

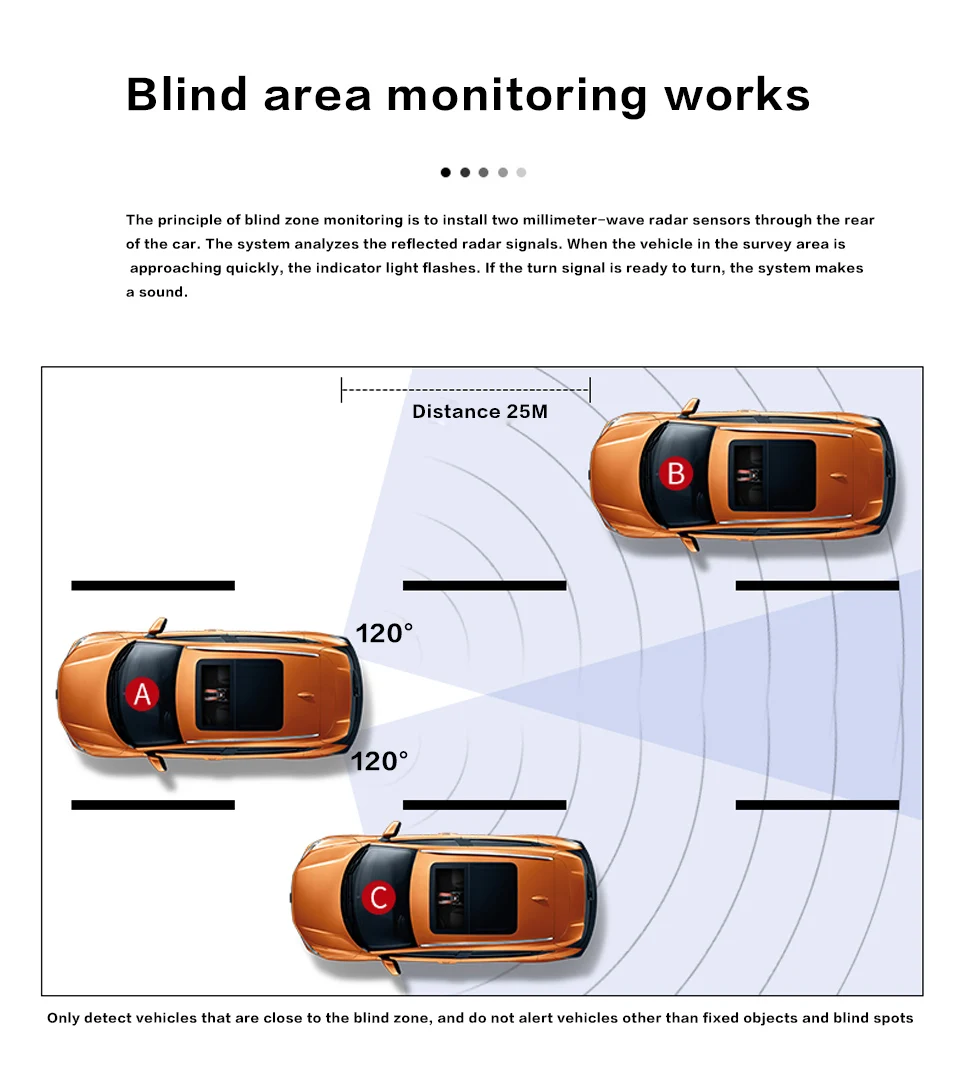

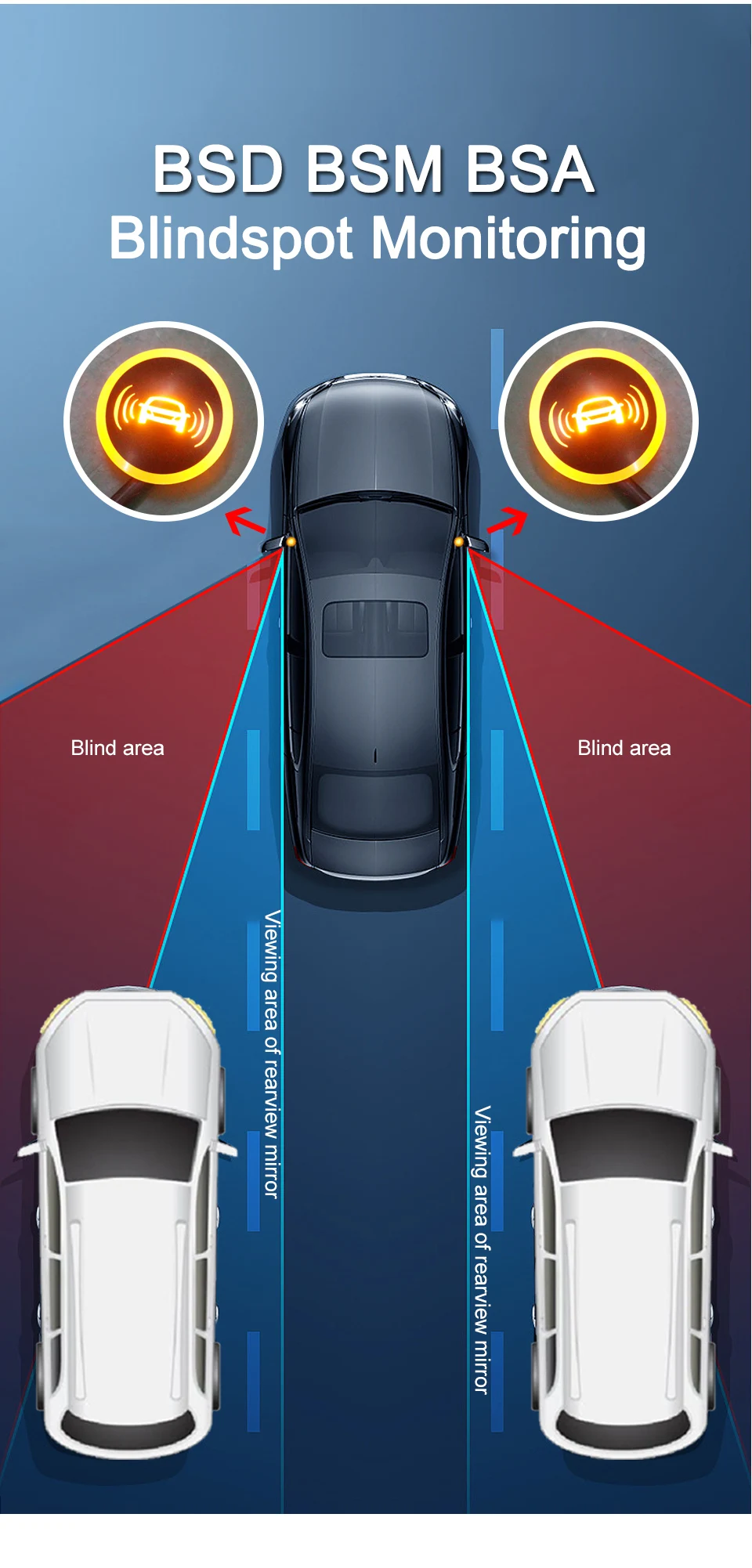

After installation of this system, when the vehicle is started,the microwave sensors on both sides of the rear will send a microwave sounding

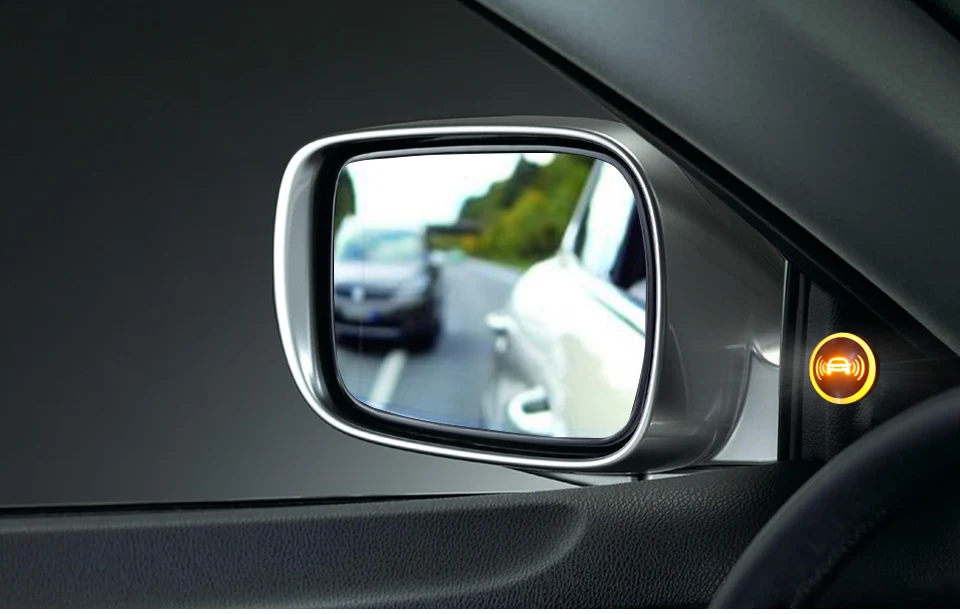

signal backwards. When a vehicle in the blind area is detected to be approaching, the system will processes the reflected signal. When it confims,that there is an object approaching,it alerts driver by issuing the corresponding sound and light signals.When the vehicle is approaching, the corresponding side of the LED lights will be lit to prompt the rear of the vehicle near
When the LED is lit, if the driver turns on the corresponding turn signal, theLED will flash and the buzzer will sound to indicate that the tumaround
is risky at this time.
1.Rainy weather, windshields and mirrors are covered with water droplets, blurred vision, change the road is very dangerous
2.Foggy weather, traffic visibility is low,line ofsight shorter, rear blur mirror, changing lanes is dangerous.
3.Snowy weather,glass, mirrorice, eyes were disturbed, blurred vision, change the road is very dangerous

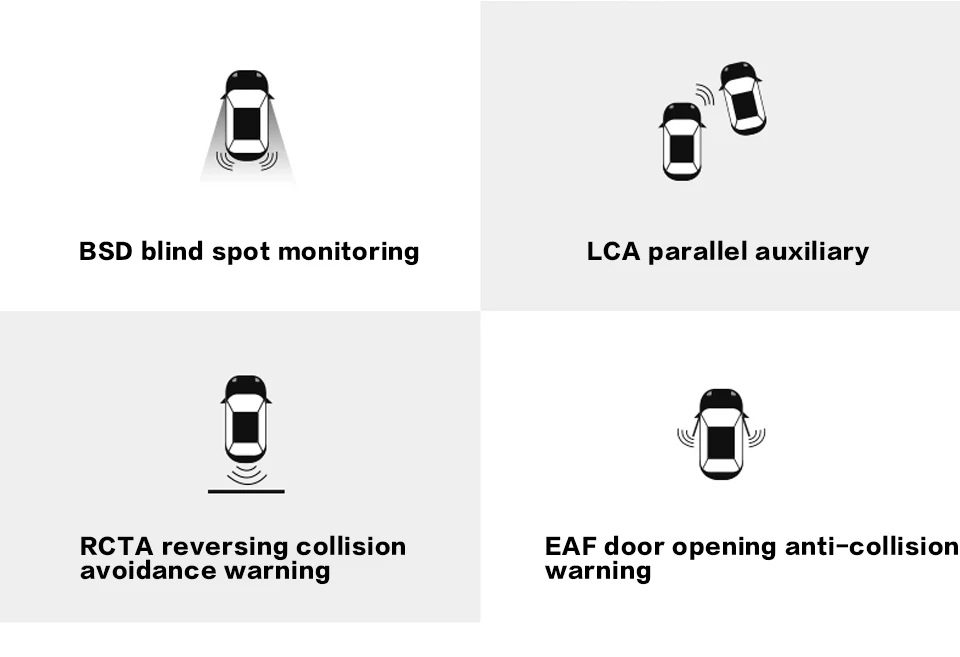

4.Inattention,chatting with other people, blind change, very dangerous WIRINGAfter the vehicle is stopped, the system delays for 30s. When there are bicycles, electric cars, motorcycles, pedestrians and other vehicles nean
he vehicle, the system will light up and there is a risk of opening the doors. Please confirm the safety before opening the doors

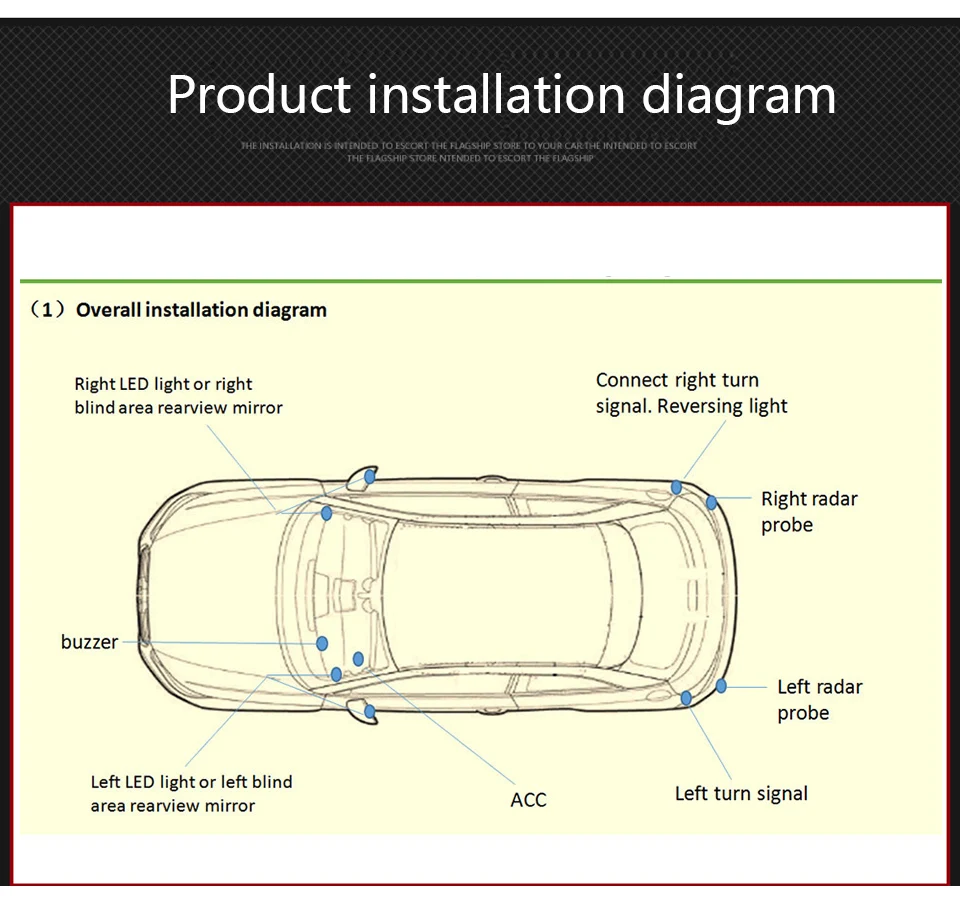

THE APPLICATION FEATURES AND SCENARIOSYellow line is connected with common battery, battery B +
● Red line then ACC +
Black line grounding
Turn lights connect to the positive of the correspondinglampOther extension wire directly marked according to the mark
INSTALLATION REQUIREMENTS

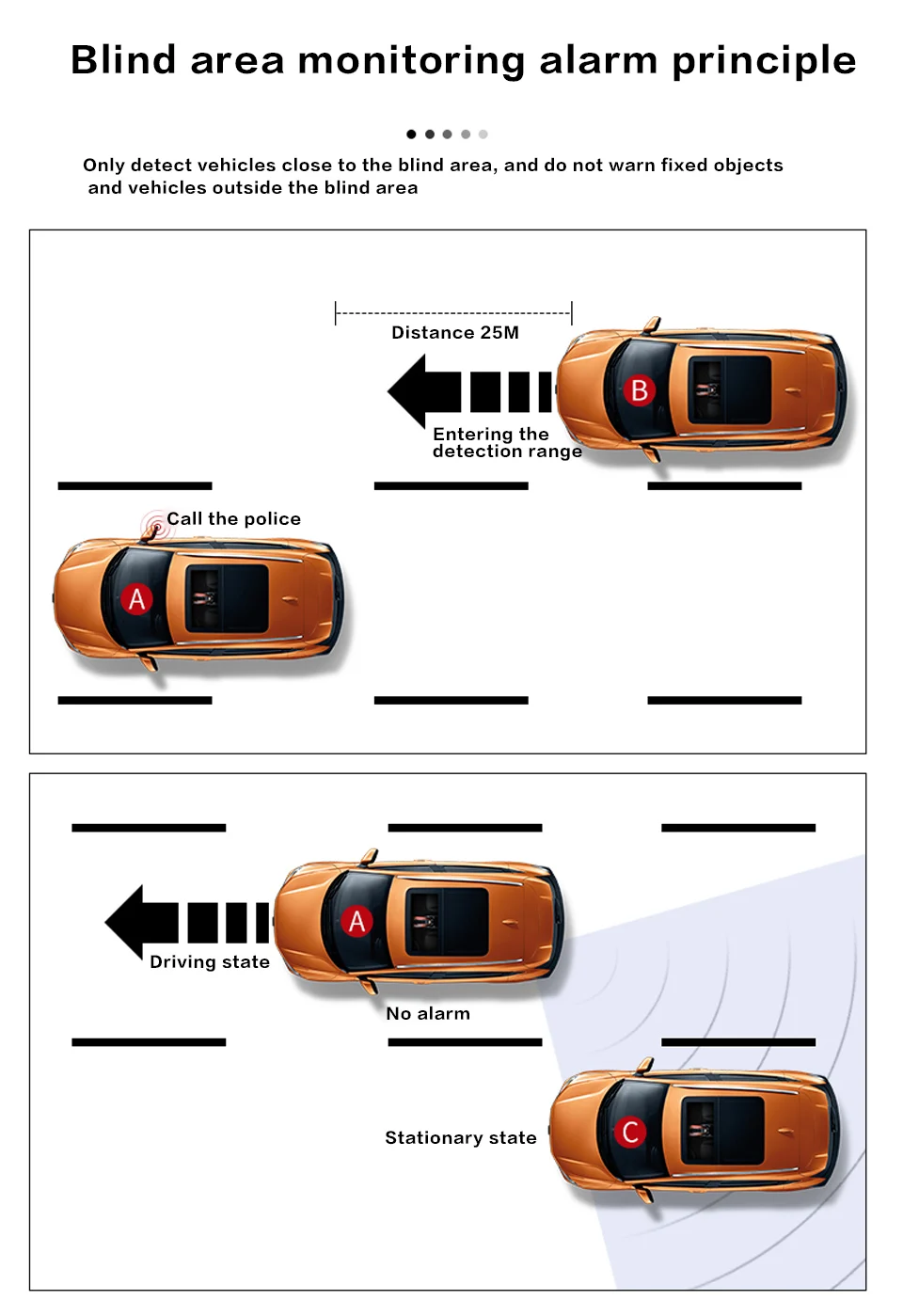

INSTRUCTIONS FOR USE1.When it detects moving vehicle or people near, the corresponding LED warning light will flash to alarm.
2.When the alarm light is on, if the driver turns on the corresponding turn light, the LED alarm light flashes, and the buzzer sounds alarm.1.The signal transmitting surface of the sensor can only penetrate
the plastic bumper shell and can not penetrate the metal.
2.The sensor may be affected by fluorescent light
3.The sensor should be firmly fixed with a bracket or 3M glue without shaking
4.The sensor terminals are vertically downward and parallel outward 25
