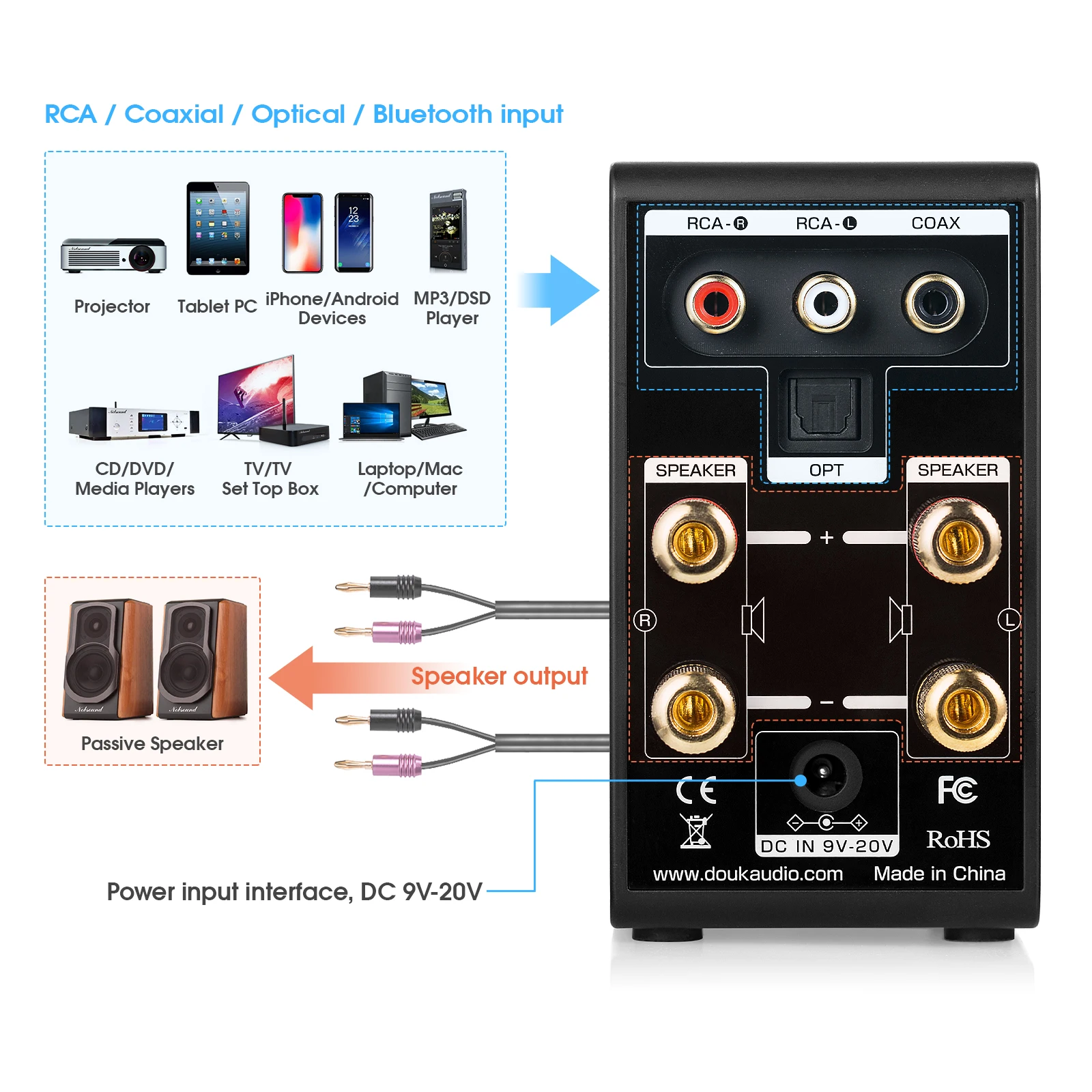

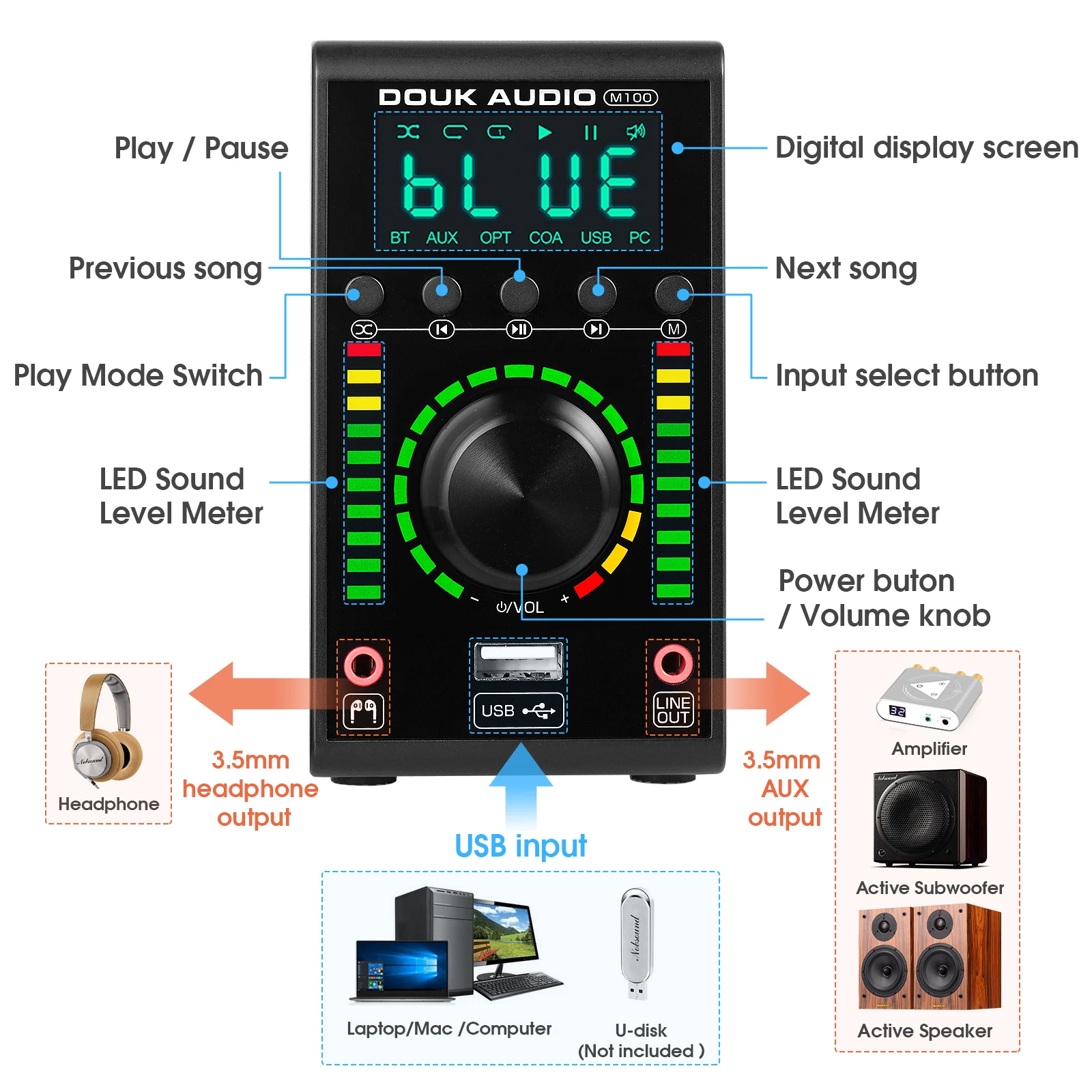

- Abundant audio I/O interfaces: with 5 kinds of audio inputs (Bluetooth / PC-USB & U-disk / stereo RCA / coaxial / optical) and 3 kinds of audio output (speaker jacks / 3.5mm AUX / 3.5mm headphone jack), compatible with different home audio devices such as phone, computer, tablet, MP3, TV, CD player etc..

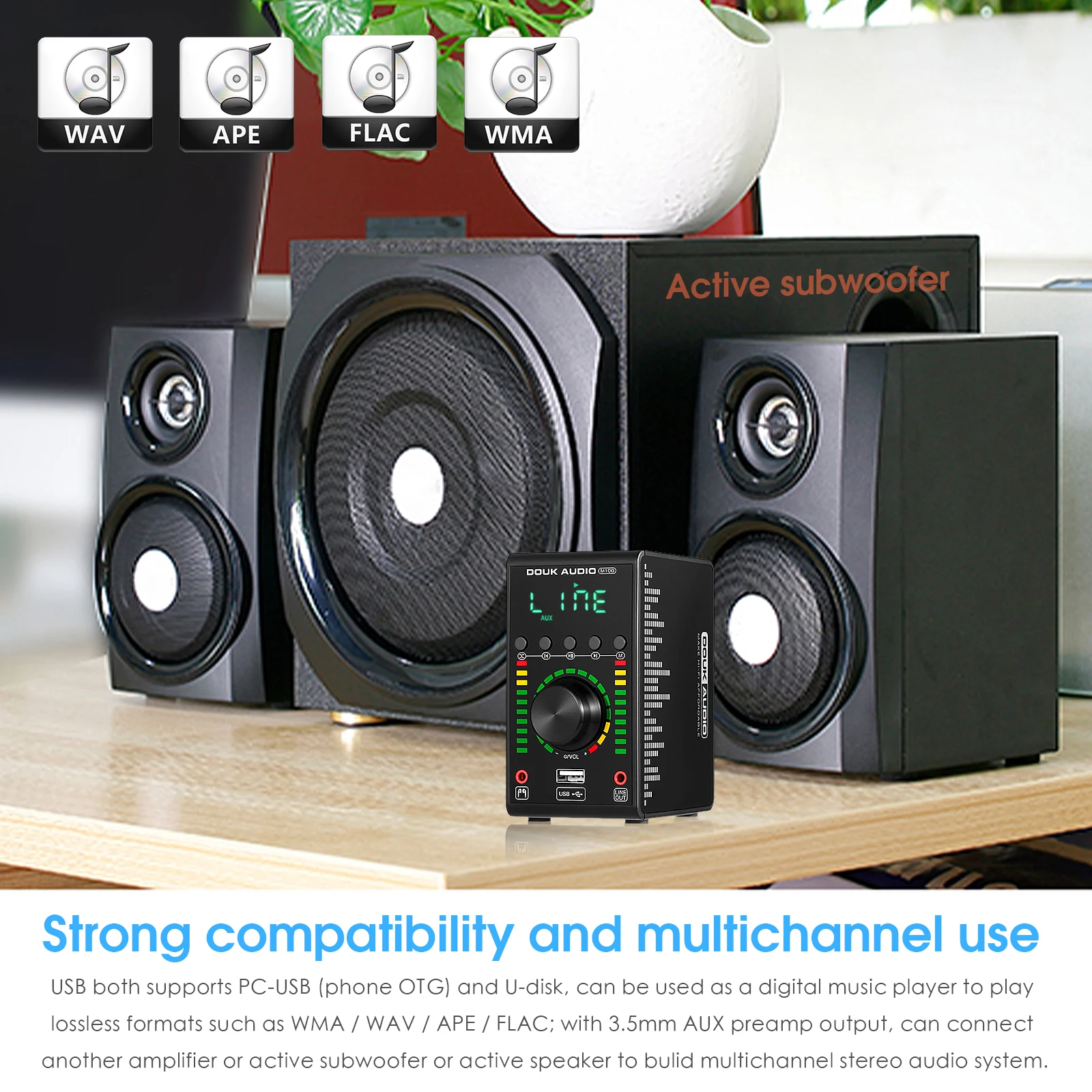

- Strong compatibility and multichannel use: USB both supports PC-USB (phone OTG) and U-disk, can be used as a digital music player to play lossless formats such as WMA / WAV / APE / FLAC; with 3.5mm AUX preamp output, can connect another amplifier or active subwoofer or active speaker to bulid multichannel stereo audio system.
- Enough power and wide working voltage: adopts Infineon MA12070 chip, max output power reaches 68W+68W, easily to drive most home desktop / bookshelf / indoor passive speakers (4-16Ω). DC 9-20V wide working voltage, M100 is also suitable for home/ car / motorcycle / marine stereo system use, HiFi music can be enjoyed anywhere and anytime.

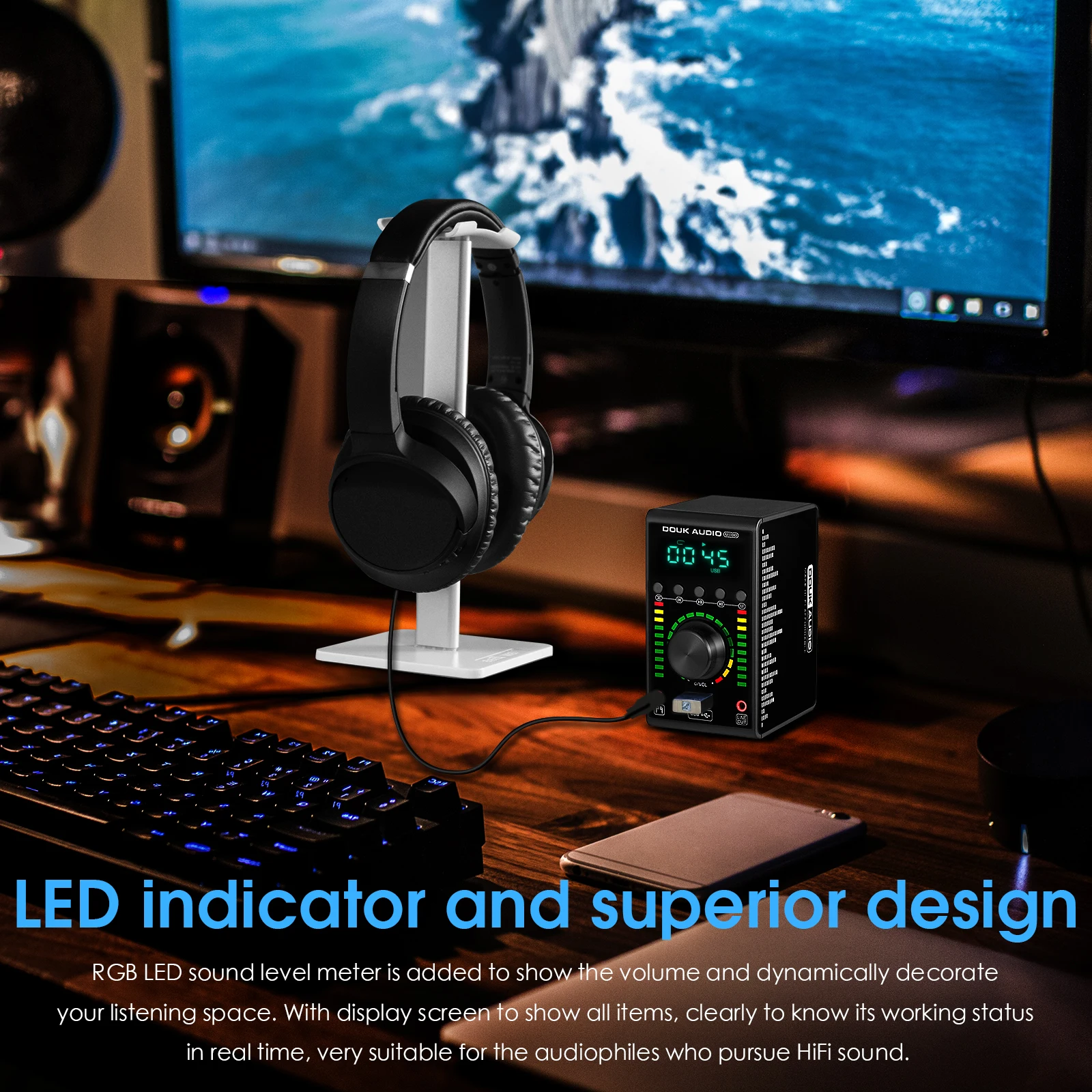

- LED indicator and superior design: RGB LED sound level meter is added to show the volume and dynamically decorate your listening space. With display screen to show all items, clearly to know its working status in real time, very suitable for the audiophiles who pursue HiFi sound.
Warm tips:
Parameters
- Audio input: Bluetooth 5.0 / USB (PC-USB / U-disk) / Coaxial / Optical / Stereo RCA
- Audio output: banana speaker jacks / 3.5mm headphone jack / 3.5mm AUX
- Amp Chip: Infineon MA12070
- Output power: 68W+68W
- Output impedance: 4/6/8/16Ω
- Sampling Rate:
24bit/192kHz (Optical / Coaxial)
16bit/44.1kHz (USB)
- U-disk formats supported: MP3 / WMA / WAV / APE / FLAC
- U-disk format: FAT32 (not support NTFS)
- Working voltage: DC 9-20V
- Power interface specification: 5.5mm / 2.1-2.5mm

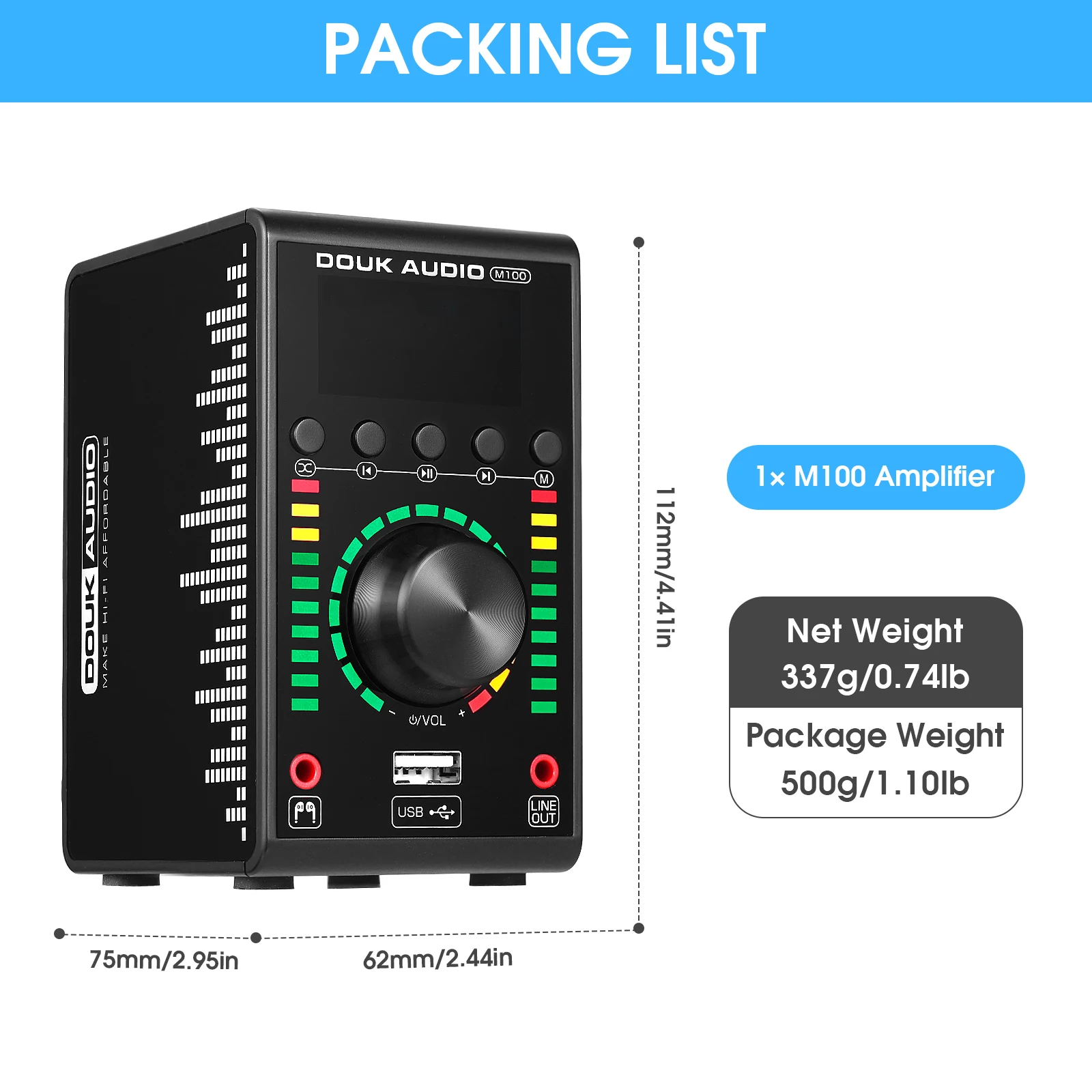

- Dimensions(W*D*H): 62*75*112mm / 2.44*2.95*4.41in
- Net weight: 337g / 0.74lb
- Package weight (without power adapter): 500g / 1.10lb
- Package weight (with power adapter): 700g / 1.54lb

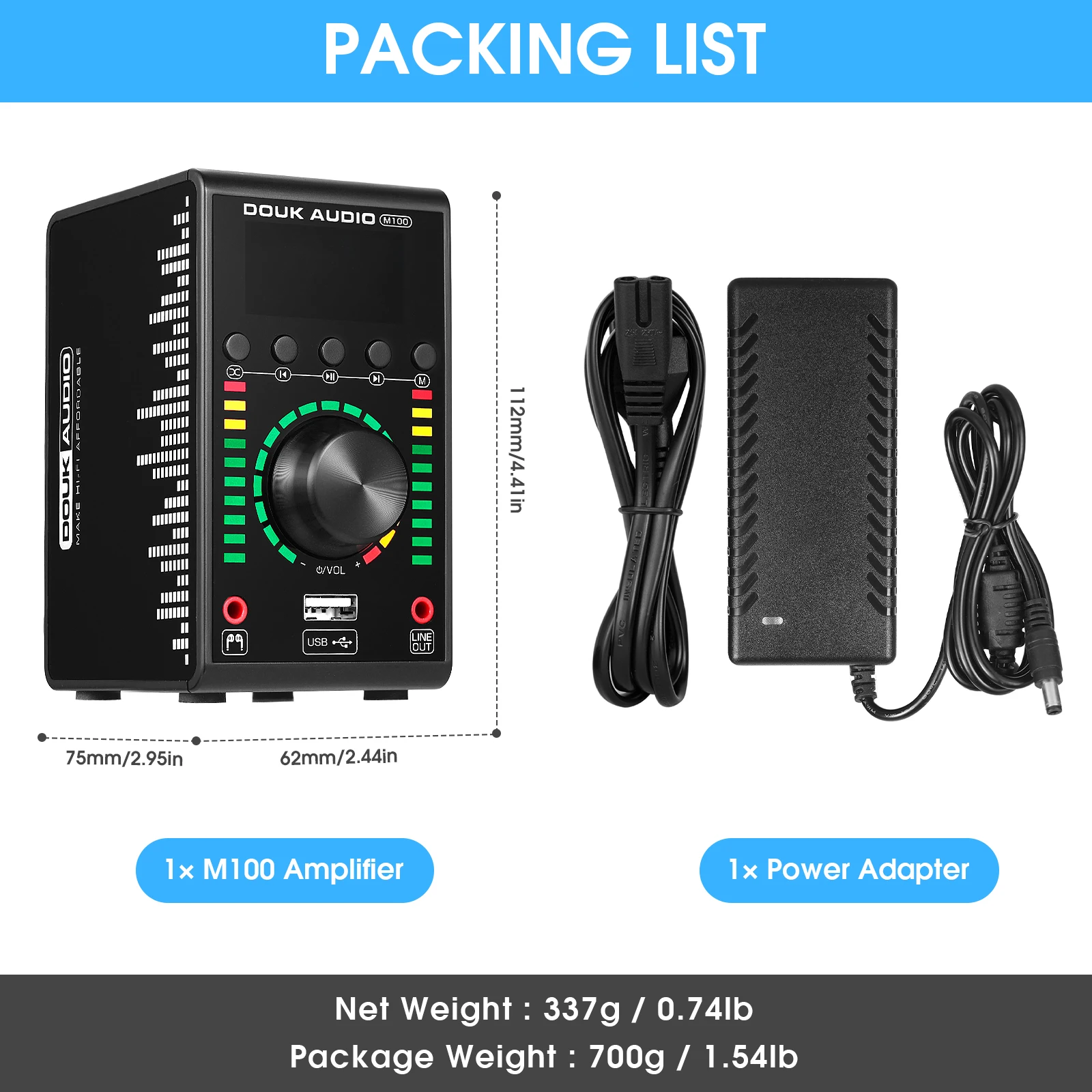

Packing List
- 1*M100 Amplifier
- 1*DC 12V Power Adapter (Optional)
