Features And Specifications
●Installation Type:Portable Recorder, suitable for all vehicles
●Screen(Display) Size:10.0 Inch Touch IPS Screen
●Chipset(Processor/CPU):Huawei Hisilicon
●Camera Sensor:Front 8MP + Rear 2MP
●Camera Lens:
Front:6 Glass + 170 Degree Angle + F1.6 Aperture + 3840*2160P@30FPS
Rear :4 Glass + 140 Degree Angle + F2.0 Aperture + 1920*1080P@30FPS
●Photo Resolution:12M
●Video Code:H.264
●Battery:Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
●OSD Languages:Russian, Chinese, English, Korean, Japanese, French, Polish, Dutch, Spanish, Hebrew, Portuguese, Arabic Turkish, German, Hungarian, Lithuanian, Czech, Italian, Slovak, Romanian, Thai, Vietnamese.(Because the memory of the machine is limited, we customize the language firmware version 2. Please leave a message in advance to let us know what language you need. We will print the corresponding language for you before shipment)
●Basic Features:G-Sensor, Cycle Recording, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
●Memory Card:Micro SD Card, class 10 and 16GB to 128GB (Not included)
●Rear Camera Upgrade:Support max 10 meters cable Rear Camera
●Add Features:Night Vision, 3840*2160P front Camera With 1080P Rear Camera
Packing List
-1 x Packaging box
-1 x DVR
-1 x Power charger
-2 x Bandage
-1 x User manual
-1 x 1080P Night Vision Rearview Camera With 6 Meters Cable(Optional)
-1 x Hardwire Kit For 24H Parking Monitoring(Optional)
-1 x GPS(Optional)
Pay Attention
●About 24h Monitoring:The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
●About Video Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally, if you can’t make sure you have good TF Card,please buy our Original TF Card together.
●About languages: We currently have more than 30 national languages, but due to machine language memory limitations, it is not possible to implant all languages. Before purchasing, you can inform customer service of the desired language, and we will prepare corresponding language programs according to your needs before shipping

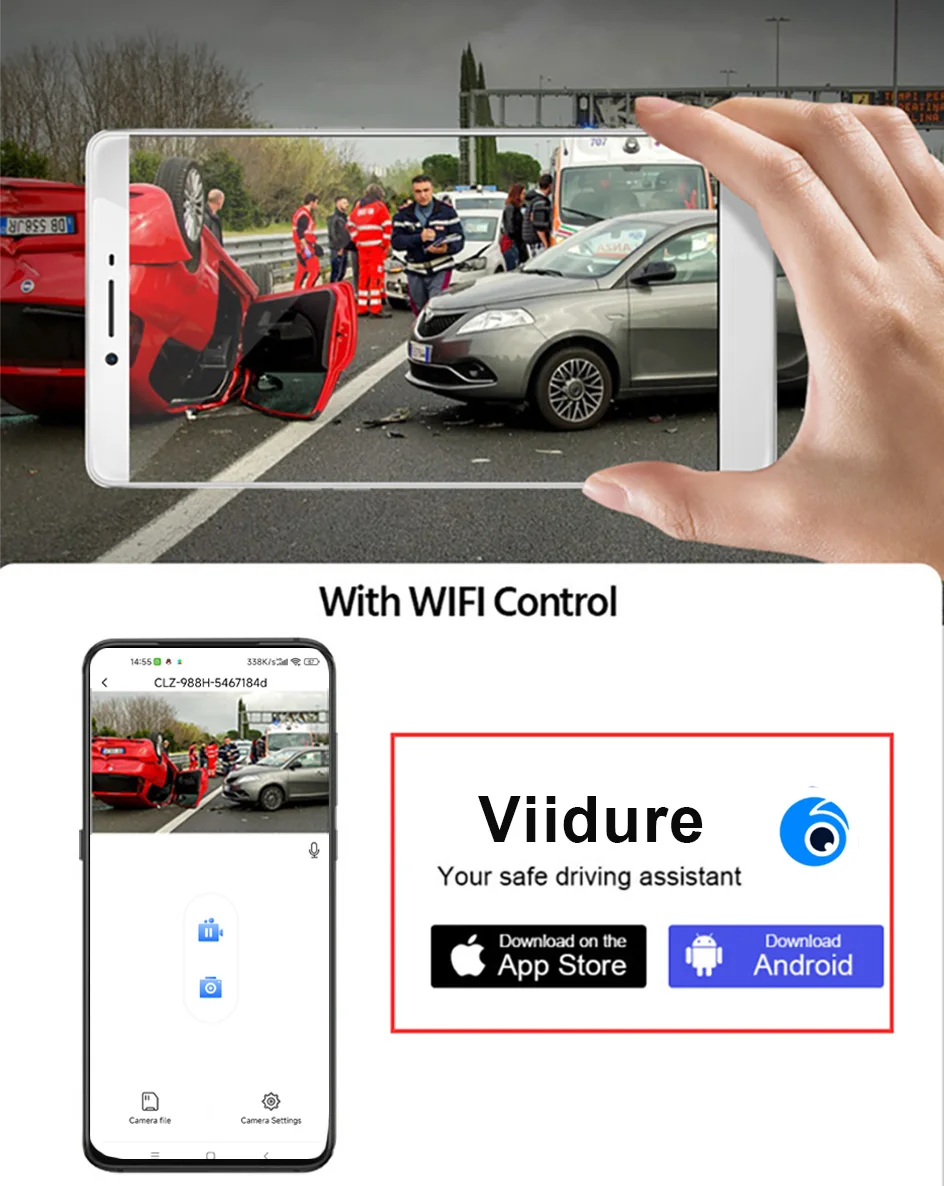

Main FeaturesConnect WiFi Control
You can control the DVR by connected mobile phonevia WiFi, like recording video, the file recorded video from the overwriting.taking photo, playback preview,parameter settings, etc.GPS Fuction

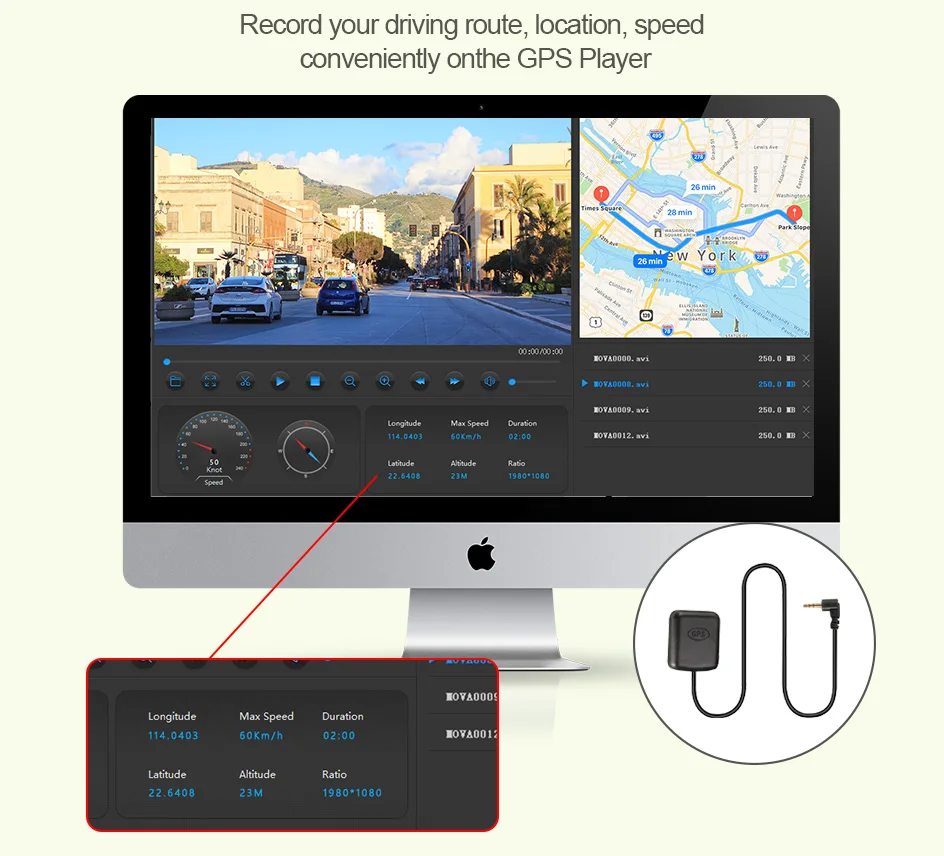

GPS function is to record the driving route location.we can see the speed and driving route on the computer by provided player.(To use GPS functionality, you need to purchase a GPS module)GPS Antenna(You can buy from this link://www.aliexpress.com/item/1005004974965248.html)

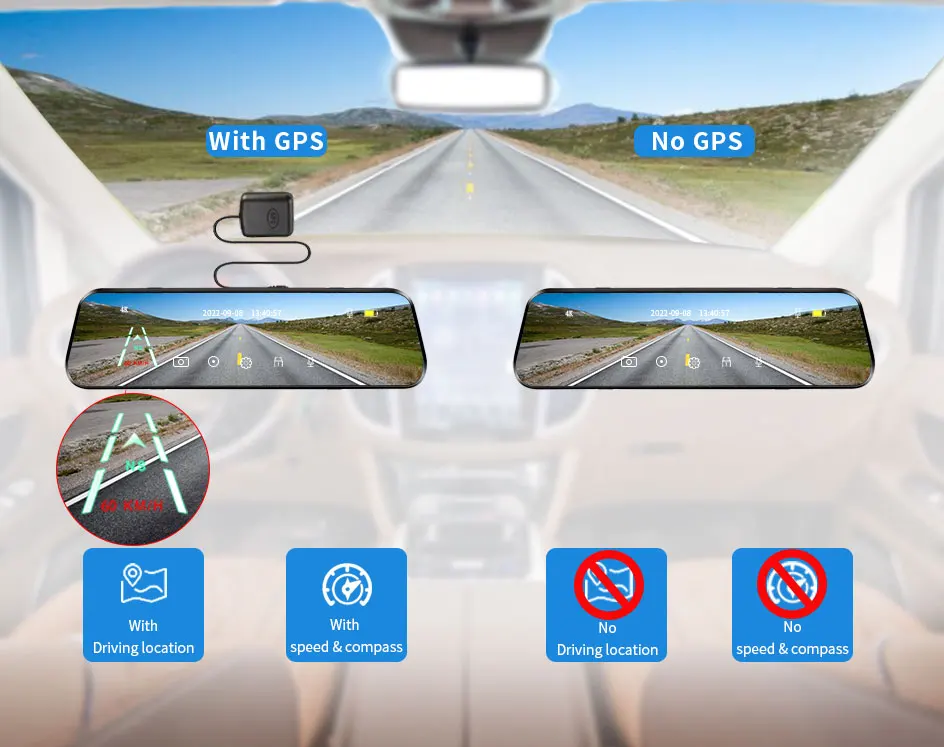

Connect the GPS Antenna to DVR Mirror, after the GPS connect with satellites, will show the driving speed and compass on screenStreaming Medaia DVR Mirror

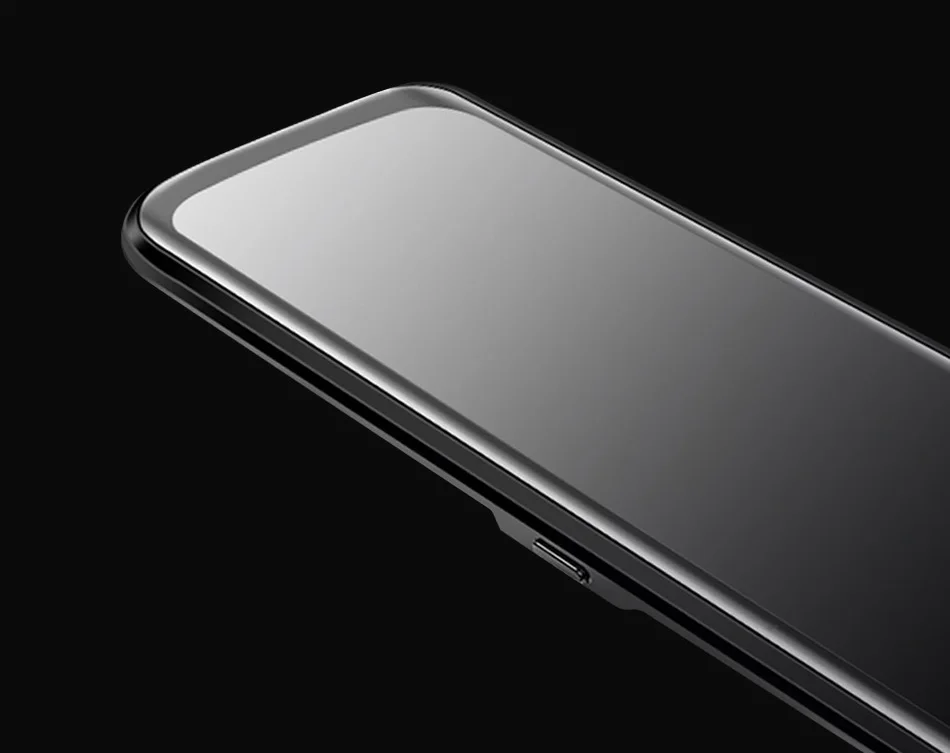

A37P is equipped with this streaming media technology,makes the driving rear view angle more widely,it is triple wide view angle then the traditional mirror.Dvr use HD to provide you with flawless images in rain,fog,snow,or even at low-light level.10 Inch 2.5D Curved Surface ScreenHuawei Hisilicon Chip

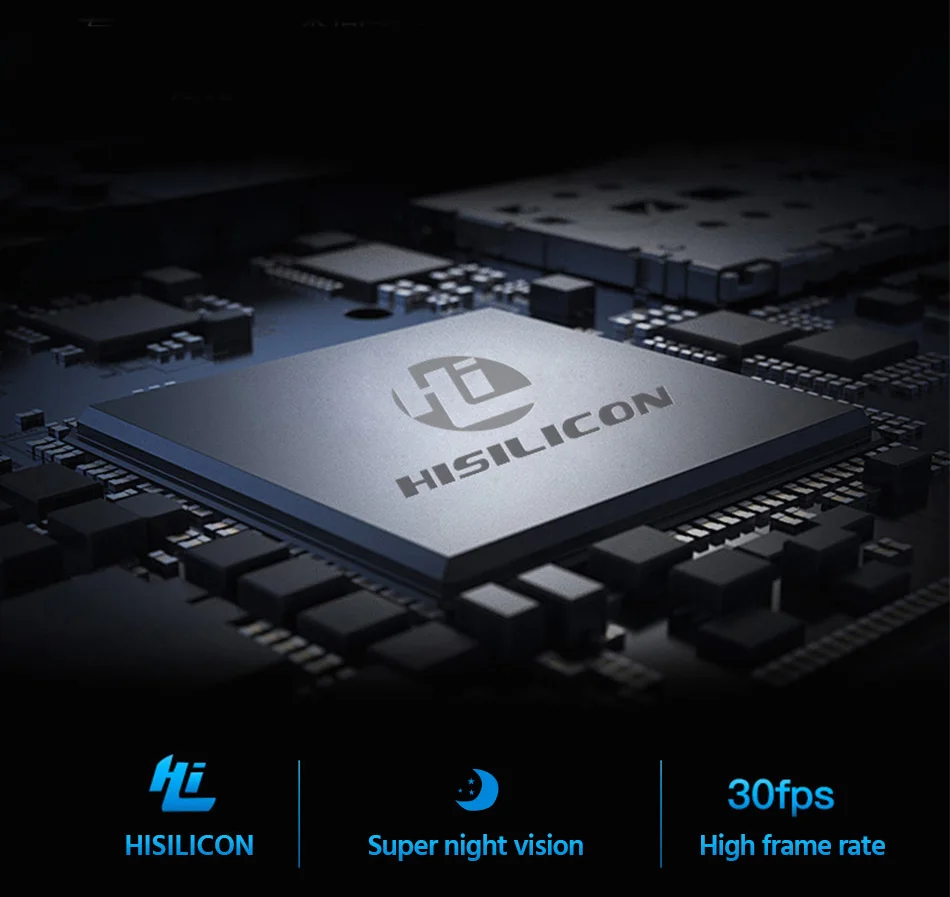

A37P use Original Hisilicon Chip and Sony image sensor.Professional image processor and Sony sensor,picture quality is more detailed.Sony 415 Sensor 4K UHD Video

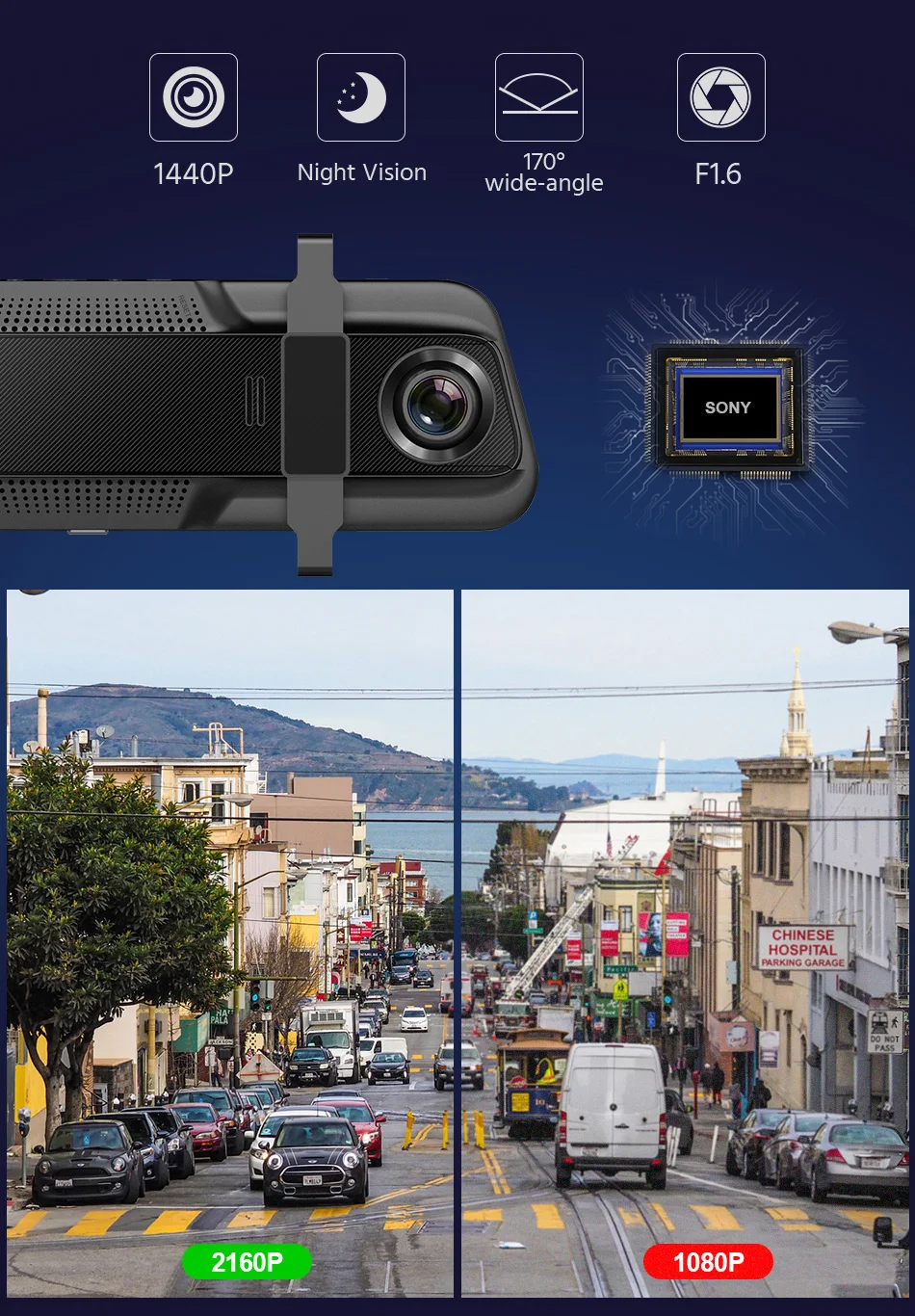

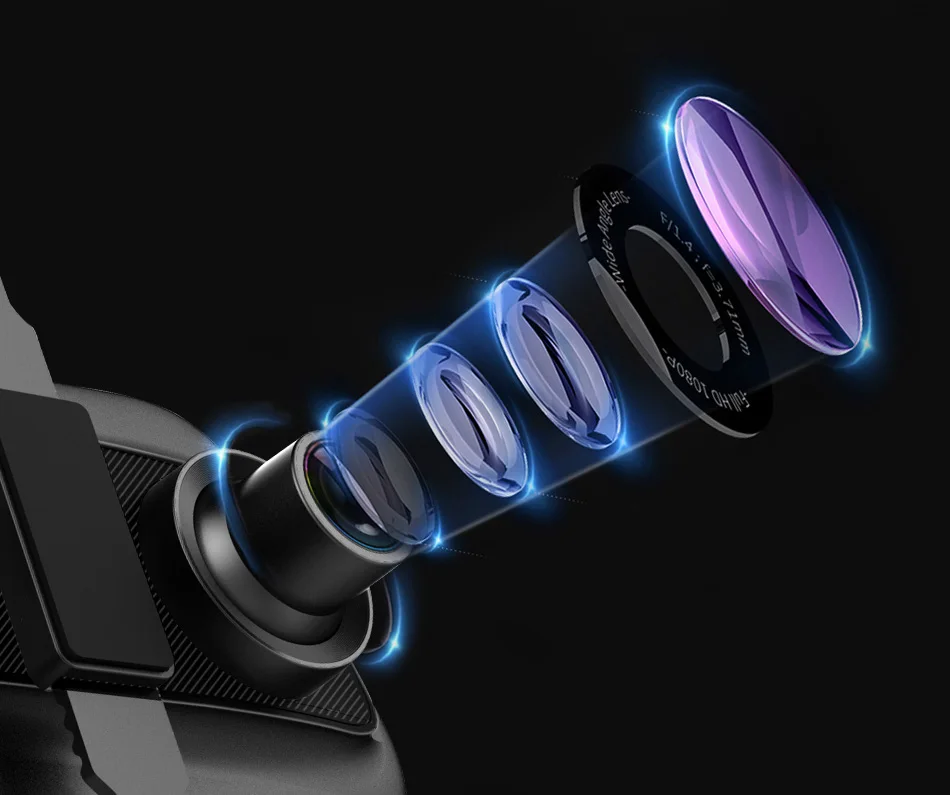

The front camera image sensor is Sony IMX415,and 6-lens quality offers non-deforming images,together with 170° wide angle,captures the whole road’s picture in 2160P high resolution.Flexible Front Camera

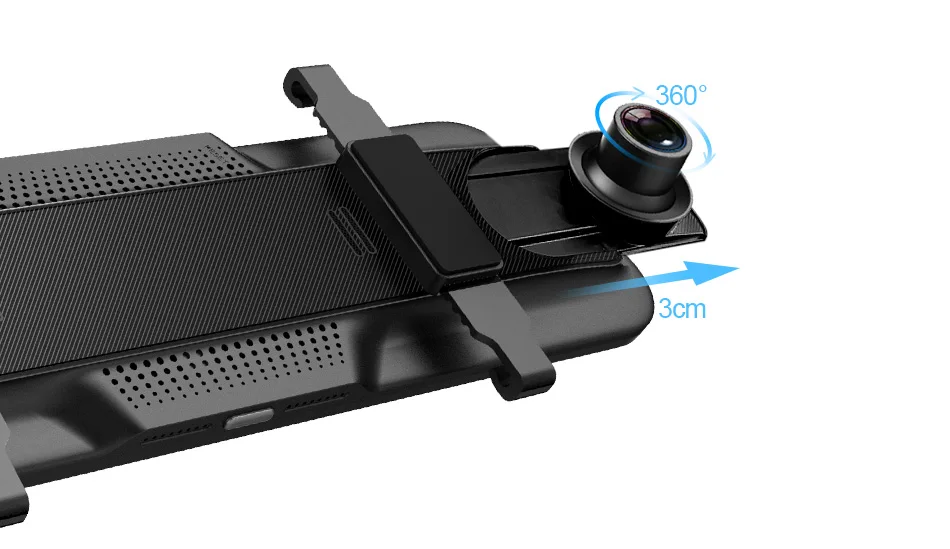

3cm longer can be adjustable,can also adjust the lens up and down and left and right.1080P resolution clear viewing rear view images,and are-versing line Better than the original car reversing images,reversing more secure.170 Degree Angle 2160P front camer with 140 Degree Angle 1080P Night vision Rear view Camera (Optional),allows for simultaneously recording videos from two different angles.Two split view make you have clear view from front and back-up camera.6 Glass HD LensTime Lapse Video Function

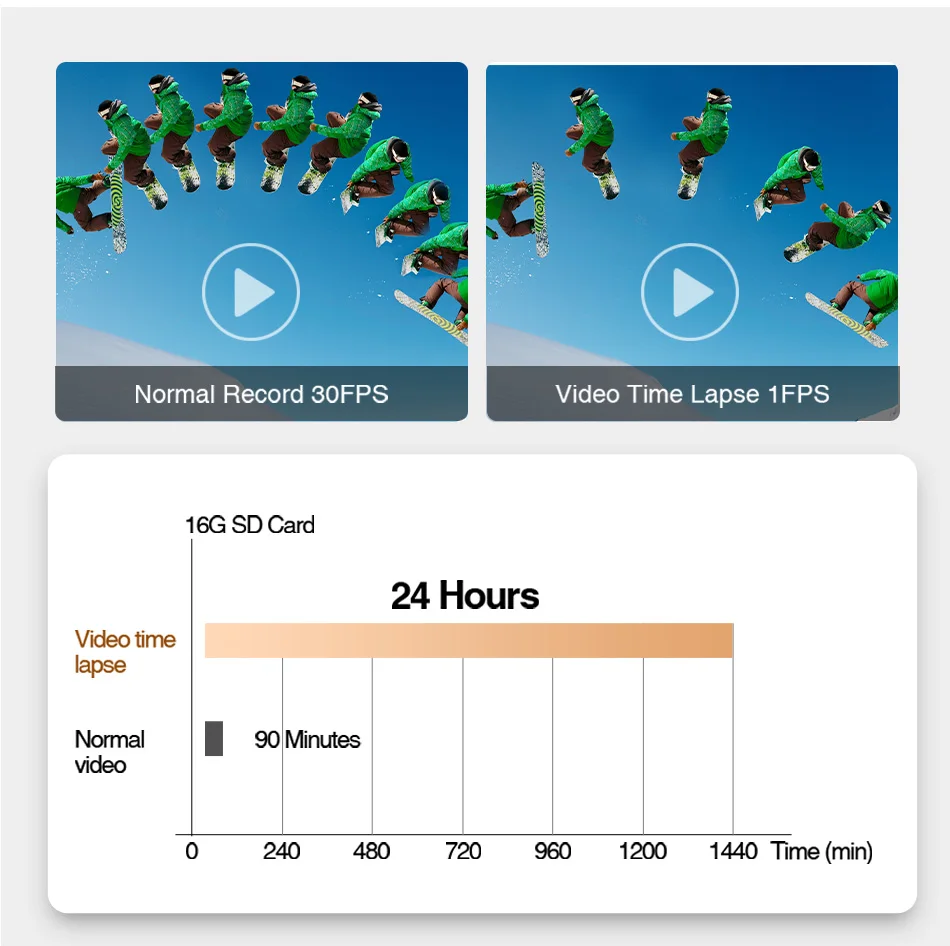

Time-lapse video can be continuously recorded for 24 hours, more secure and convenient! No need to format the memory card often.(Note: Need to buy a buck line)More functionsHardwire Kit
Use the Hardwire Kit to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the Hardwire Kit to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the Hardwire Kit to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the Hardwire Kit to the fuse box ACC interface.Video DisplayPacking List

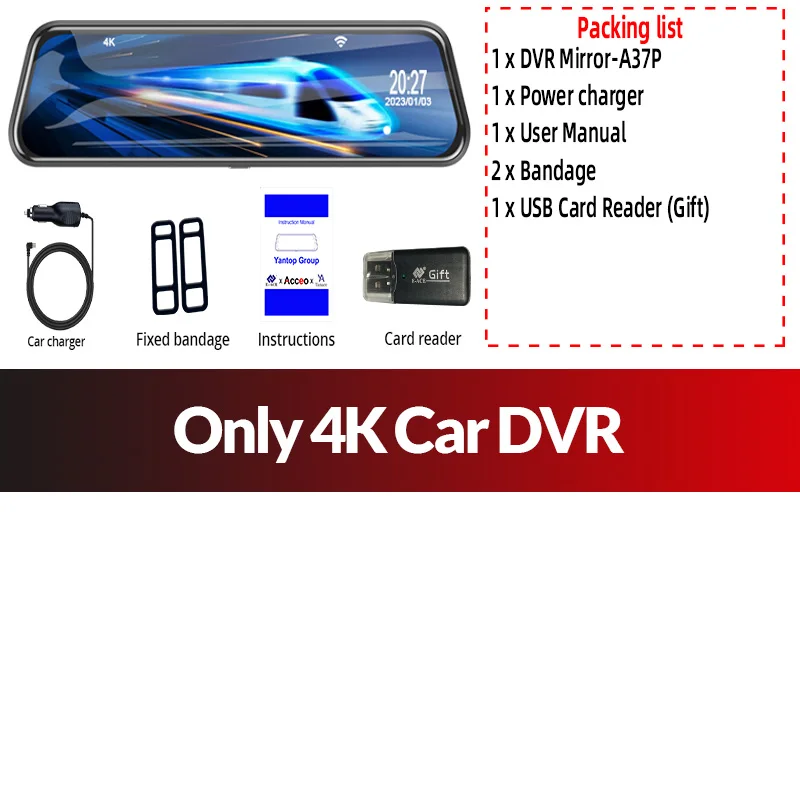

A37P(Only Front Camera)
-1 x DVR(Without Rearview Camera)
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)

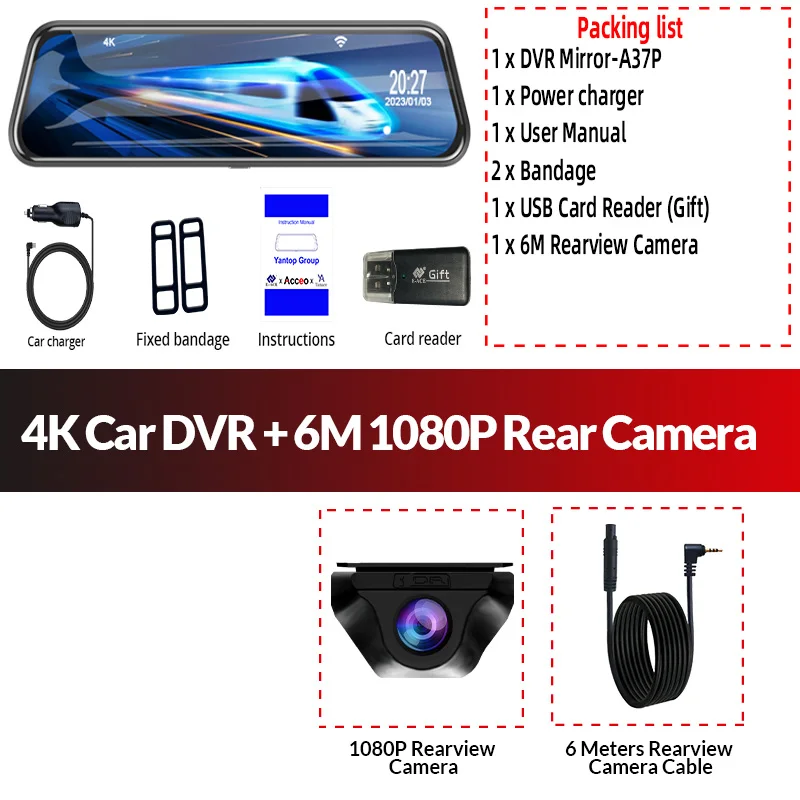

-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x 1080P Rearview Camera With 6Meters Cable
A37P-I32-Z21(DVR-6M RC-KIT)
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x Hardwire Kit
-1 x 1080P Rearview Camera With 6Meters Cable
Installation Display

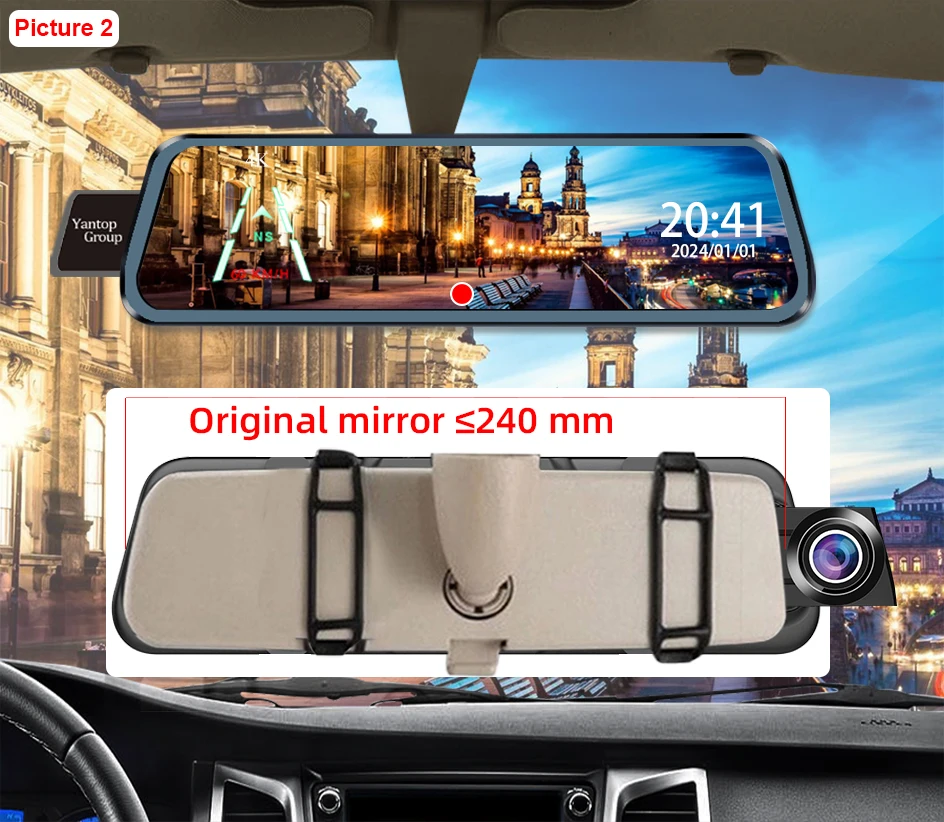

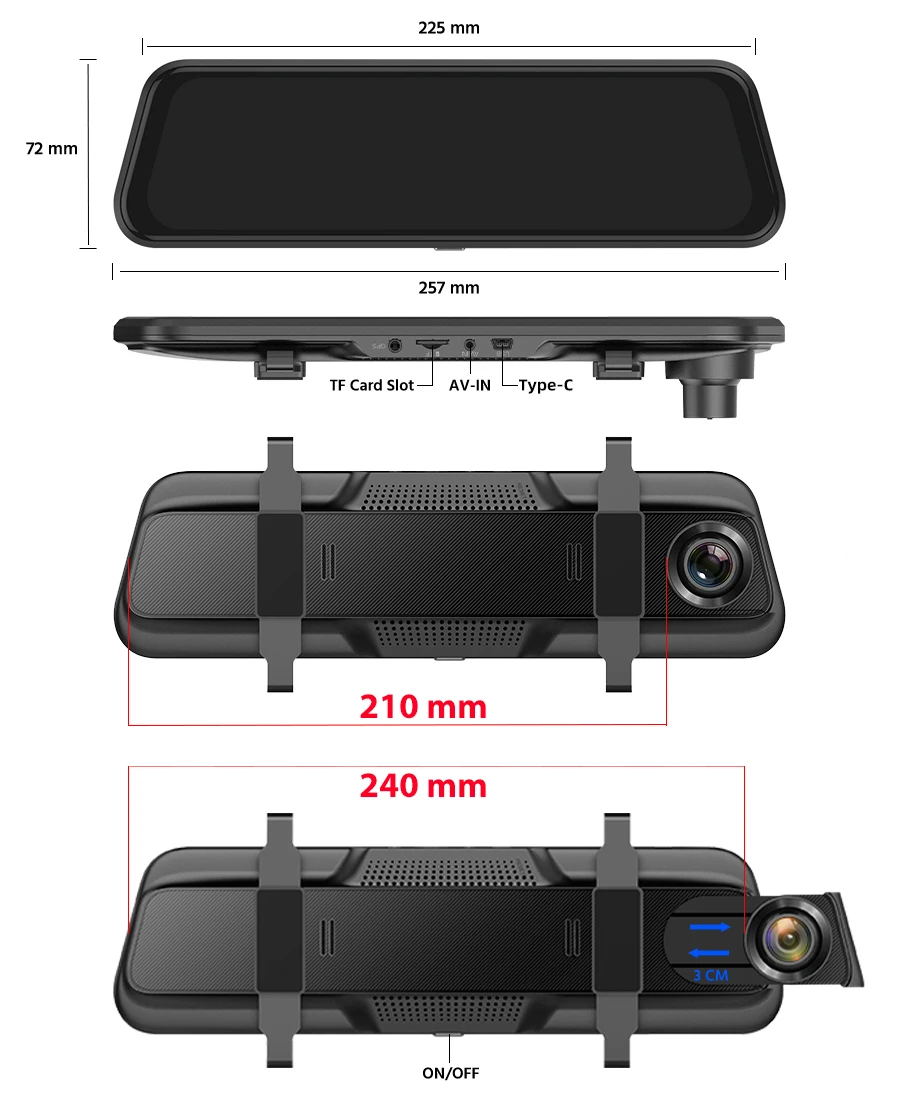

If you want the DVR Mirror looks beautiful after install our A37, please confirm your original car mirror is less than 210mm, like following picture 1. And if your Original car mirror is more than 210mm and less than 240mm, please take the camera lens out. Like following picture 2.
About Rear Camera Installation

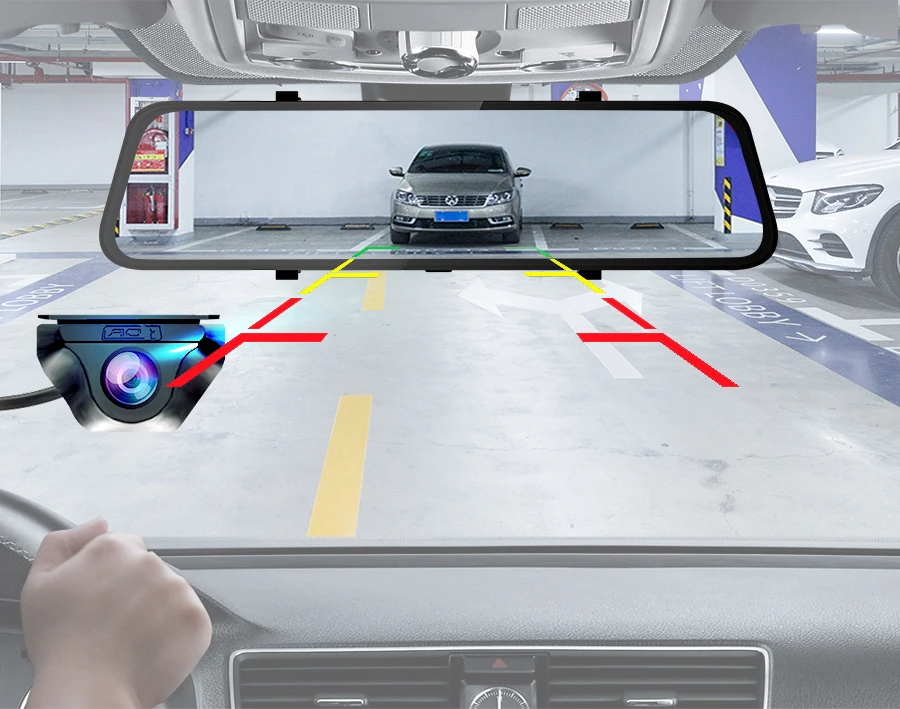

Please connect the rear camera’s Red cable wire with your car reverse lamp power ‘s Positive pole(+).and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear, the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
